Air Lamp (Pneumatic)

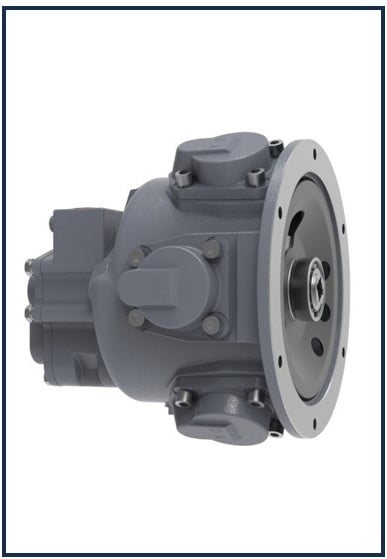

Air Motor (Pneumatic)

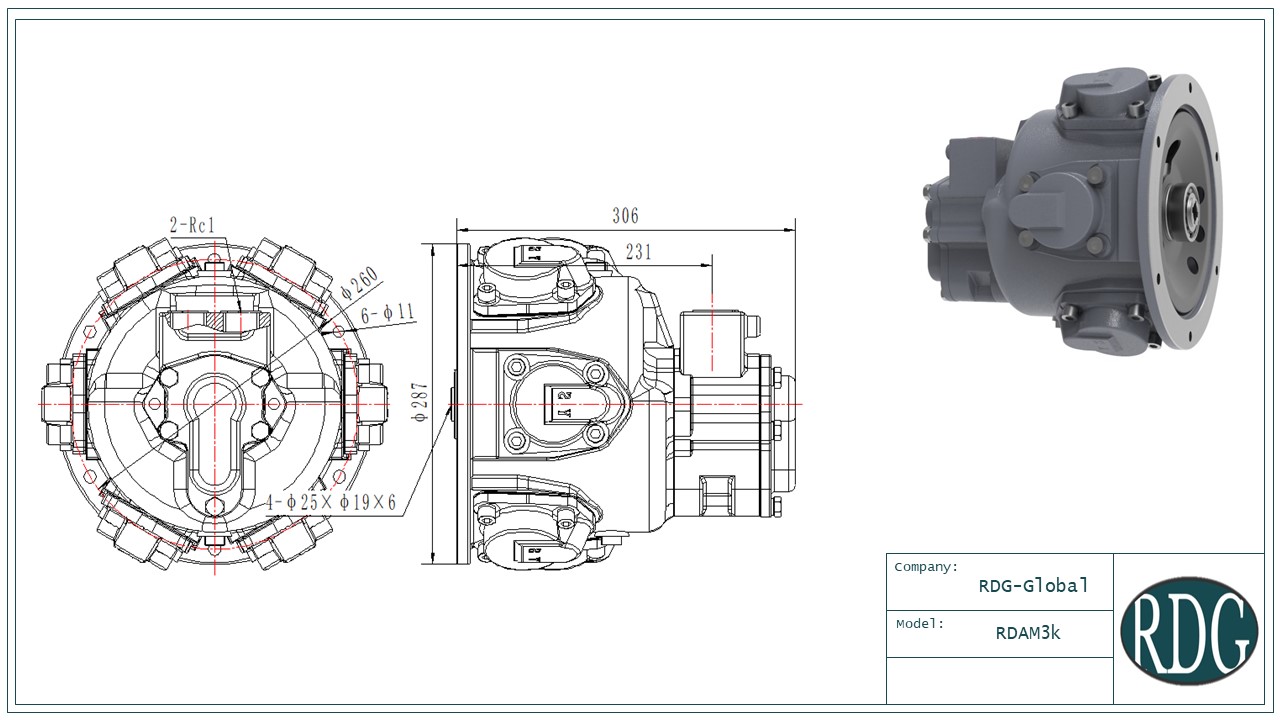

  • RDAM3k

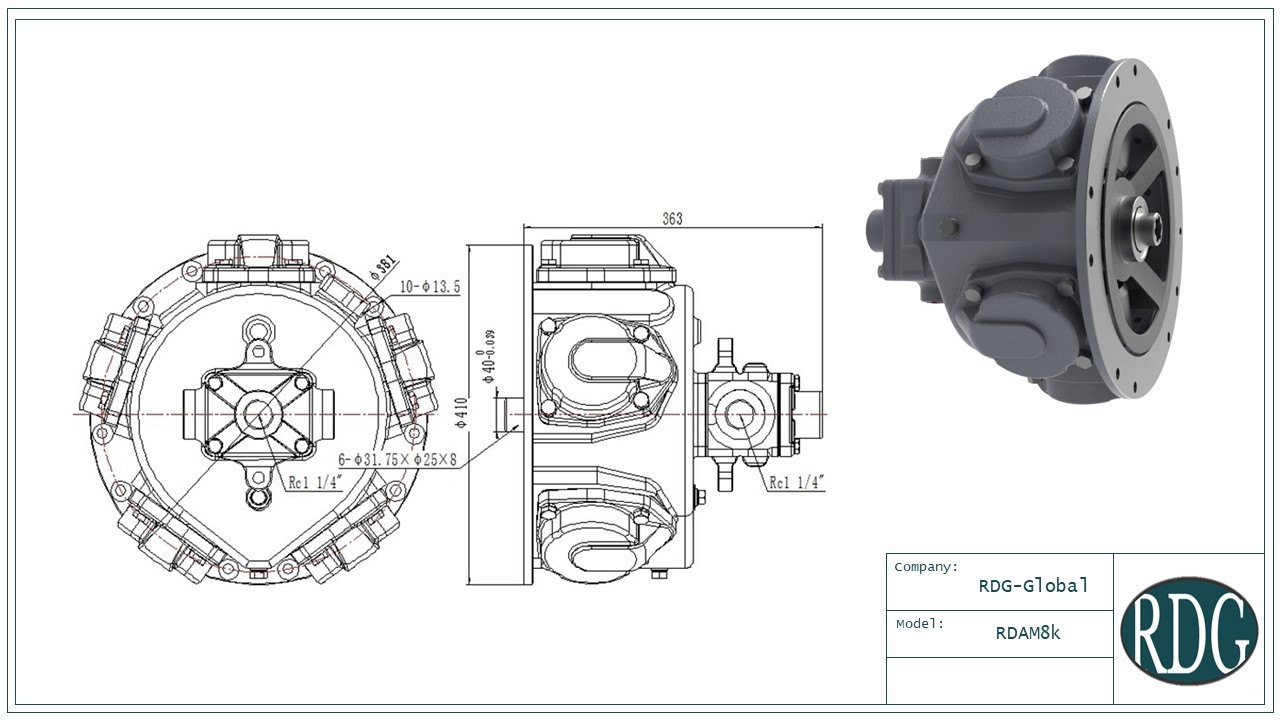

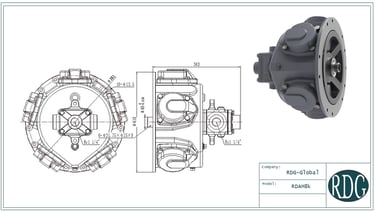

  • RDAM8k

Air motor is operated on the basis of the following principles. After entering into the air distribution system (valve core and valve sleeve), the compressed air is accordingly delivered into cylinders, expanding to push the piston reciprocating; the pistons then drive the shaft and crank journal reciprocating and finally output driving power.

The air motor is matched with Epiroc’s AIRROC D45 rock drills; it is widely used in mining machines for drilling and loading, and also driving machines for oilfields, chemicals, constructions, engineering sites etc.
